Brand Name : DIXUN
Model Number : DX-GWC-2500D
Certification : CE
Place of Origin : China
MOQ : One set
Payment Terms : L/C, T/T
Supply Ability : 6 sets per month
Delivery Time : 30 working days
Packaging Details : The Reinforcing Mesh Panel Welding Equipment is nude packing. Need one 40 feet container load.
Product name : Mesh panel welding machine
Wire diameter : 5.0-9.0mm
Welding mesh width : 2500mm
Line wire space : 50-300mm
Cross wire space : 50-300mm
Mesh length : 6m
Welding electrode : 48PCS
Welding speed : 65 times per min
Welding transformer : 160KVA*8PCS with water cooling system
Upper copper electrode size : 20*120mm
Down copper electrode : 20*20*20mm
Condition : New
Wire Diameter 5-9mm Construction Mesh Reinforcing Mesh Panel Welding Equipment
Reinforcing Mesh Panel Welding Equipment Introduction:
Reinforcing mesh panel welding equipment, also called BRC mesh welding machine, Construction mesh welding machine.
The reinforcement mesh panel welding equipment is used to make steel rebar mesh, road mesh, building construction mesh. The reinforcing mesh panel welding equipment is featured by high capacity, easy operation, and precise control. The reinforcing mesh panel welding equipment can weld wire diameter 5-9mm. The minmium mesh hole size 50*50mm. Maximum up to 300*300mm. Mesh width max 2500mm. This is a midium-sized machine to make steel rebar mesh. Have big market in different countries. Save cost for clients.
Reinforcing Mesh Panel Welding Equipment Features:
1. Welding pressure is provided by spring pressure system, uniform pressure and stable performance; and the water-cooling transformer and water-cooling welding electrodes to make sure the welding firm during a long working time, and prolong the service life.
2. Cross wire feeding method: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become cross wire. Then worker put the cross wires into wire hopper. The cross wire hopper can load max 1500 tons rebar. Wire hopper under the control of air pump, the cross wires falling automatically one by one.
3. Line wire feeding method: Line wires are the same to cross wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then workers put the line wire into the under electrodes. the welding began welding.
4. Control cabinet adopts PLC control system though touch screen operate system, you can change welding time, or welding current time. mesh opening size through touch screen.
Reinforcing Mesh Panel Welding Equipment Technical Parameters:
Model | DX-GWC-2000D | DX-GWC-2500D |
Wire diameter | 5.0-9.0mm | 5.0-9.0mm |
Welding aperture | 50-300mm | 50-300mm |
Width of mesh | 2000mm | 2500mm |
Number of electrodes | 40PCS | 48PCS |
Welding speed | 45-65 times per min | 45-65 times per min |
Rated voltage | 220V 380V 415V 440V | 220V 380V 415V 440V |
Rated capacity | 160KVA*7PCS | 160KVA*8PCS |
Overall dimension | 7500*2700*1900mm | 7500*3200*1900mm |
Total weight | 5.8T | 6.8T |
Line wire form | Pre-straighten and pre-cut | Pre-straighten and pre-cut |
Cross wire form | Pre-straighten and pre-cut | Pre-straighten and pre-cut |
Operation system | By touch screen and button | By touch screen and button |
Welding pressure | By spring | By spring |
Cross wrie feeding system | By stepping motor controlled | By stepping motor controlled |
Mesh pulling system | By servo motor to pull mesh | By servo motor to pull mesh |
Water Cooling system | welding electrode cooling transformer | Welding electrode cooling transformer |
Control system | By PLC | By PLC |
Power transformer | 200KVA | 200KVA |
Reinforcing Mesh Panel Welding Equipment Applications:
Welded mesh panel widely used as reinforce mesh panel for building, construction; railway wire mesh fence, security fence and others.
Reinforcing Mesh Panel Welding Equipment Packing:
Reinforcing Mesh Panel Welding Equipment Photos:
![]() |

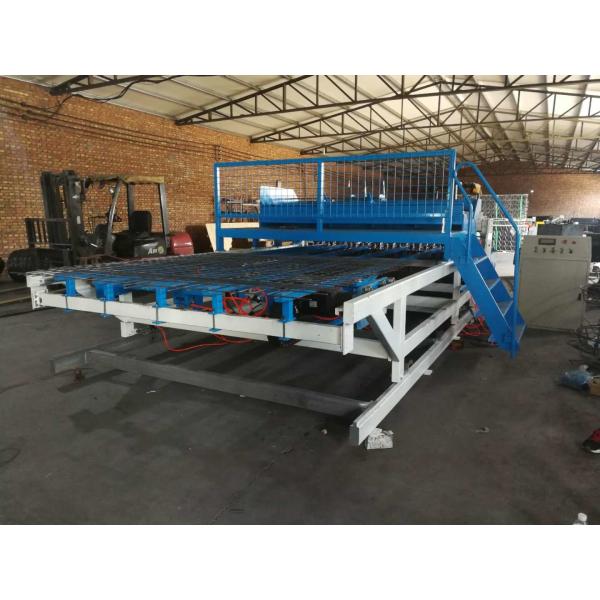

2500D 5mm 65 Times Construction Mesh Welding Machine Images |
